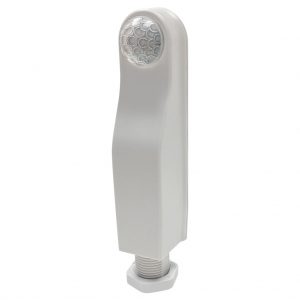

Direct digital dimming DSI &DALI mini batten mount PIR

Key features

  • Rating - (at 230V AC) 50Hz
  • Connections - Live, Neutral, Dim+, Dim-
  • Integrated unit - no separate power supply required
  • IP65 Rated
  • Movement detection up to 7 meters high
  • Suitable for a wide rage of luminaires
  • Compatible with both DALI & DSI Dimming systems(handset required for selection see PRE5901 & PRE5903)
  • Supplied with comprehensive fitting kit
  • 1000mm cable length supplied
  • 5-year warranty


The PRE3208 miniature PIR has been specifically designed for mounting onto a batten style luminaire. The PRE3208 is IP65 rated and is therefore suitable for outdoor use as well as wet and wash-down areas.

The PRE3208 is also available as an analogue dim (PRE3208-AD) variant. The direct dim variant controls DALI or DSI digital dimming ballasts, whilst the analogue dim variant controls 1-10V dimming ballasts. A 110V version is also available upon request. All functionality is fully programmable using either the PRE5901 or PRE5903 programming handsets.
